PTFE Coated Glass Fabric/Mesh Belt is a product with high release properties, excellent resistance to high temperatures and heat, as well as chemical resistance and insulation properties.
Belt Application field
Belt
PTFE Coated Glass Fabric/Mesh Belt is a product with high release properties, excellent resistance to high temperatures and heat, as well as chemical resistance and insulation properties.
Belt Application field
Application field
Applicable products
Usage
Characteristic
packaging machine
8058
Sealing of plastic packaging
Heat resistance, release properties
8108
8305
Internal conveyor of automatic contraction tunneling machine
8305KG
Textile
8103AS
Fusing press conveyor belt
Heat resistance, anti-static
8143
8103
Top Fusing (for example, a dress shirt)
8305
Fiber drying line
8305AS
Food
8108
Conveyor of Bread, Confectionery Products Production Line
Heat resistance, release properties, food safety
8058
8159TC
Conveyer for transporting tortillas
Electronic
8305
IR drying line for PCB and ITO film, etc.
Heat resistance, anti-static
8305AS
8195AS
UV drying, curing
8305AS
8308D
Synthetic resin
8148
PU, PE, PVC production conveyor
Heat resistance, release properties
8278S
8159TC
Chemistry
8058
Chemical powder, detergent
Heat resistance, chemical resistance
8108
Belt / Product type and properties table
Belt / Product type and properties table
Series No
Nominal Thickness (um)
Nominal Weight (g/m2)
Nominal Tensile Strength (N/5cm)
PTFE Coated Glass Fabric Belt
8058
122
265
1300
8108
235
490
2300
8148
340
680
4200
8278S
680
1100
4500
Solar Laminate Release Belt
8103-3
235
490
2300
8125S
310
415
3000
8143
345
700
4200
8147NC
330
610
4200
Food Contact Belt
8053-1
1,000
0.125
0.05
8159TC
1,000
0.165
0.05
8152FGBK
1,000
0.28
0.065
Silicone Belt
806KE
170
240
1500
Aramid Fabric
PTFE Coated Mesh Fabric Belt
8195
670
530
4300
1*1mm mesh
8255
770
445
2200
2*2mm mesh
8305
980
460
2400
4*4mm mesh
8305DF
1200
610
3000
8305KG
1250
644
5500
4*4mm mesh
8305AS
950
460
1800
4*4mm mesh
The information provided above is based on our general experience and is given in good faith. However, we cannot assume responsibility for factors that are beyond our knowledge or control.
The information provided above is based on our general experience and is given in good faith. However, we cannot assume responsibility for factors that are beyond our knowledge or control.
Belt connection method and photos
Overlap
Common connection method
Sawtooth
Bonding the connections into saw blades
Scarfing
A method of minimizing the step difference in the connection area
Two-Ply
Minimize the gap in the connection area by using two layers of PTFE Coated Fabric.
Smartloop
Type to connect a pin to the ring
Peek
Connecting hook, connecting pin Peek material

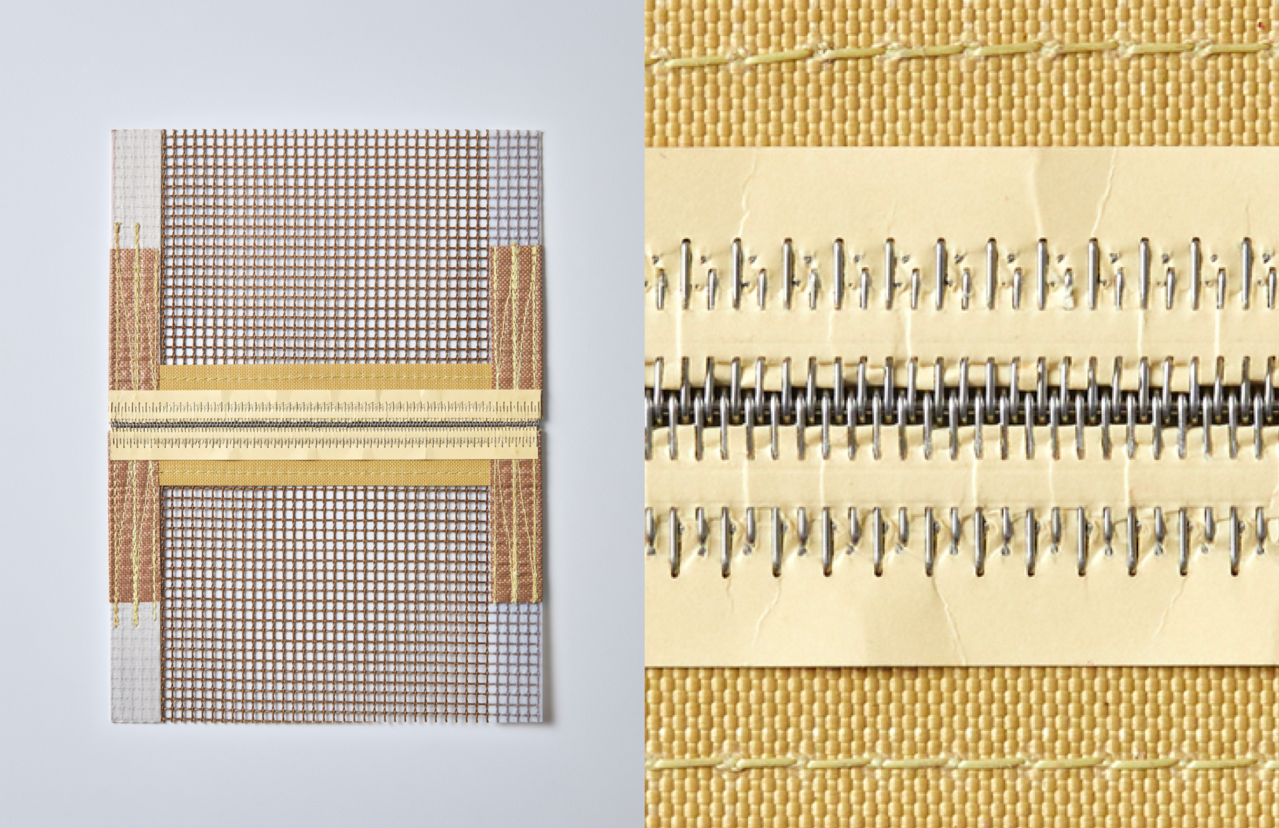

Clipper
Connection using Clipper
Alligator
Connecting using metal shaped like crocodile teeth
